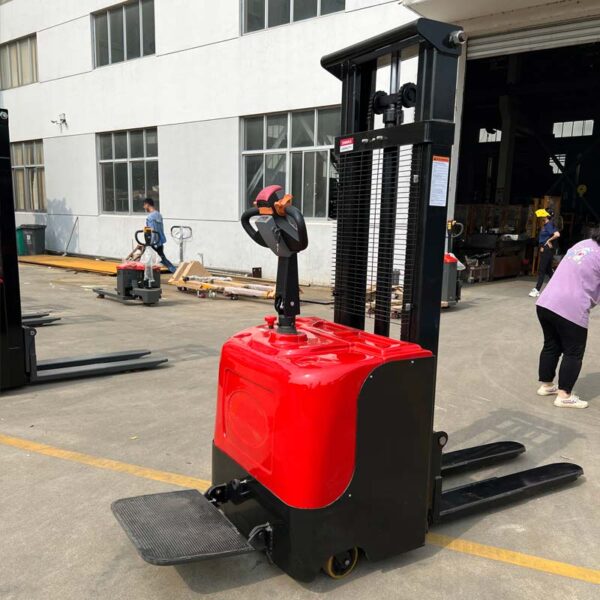

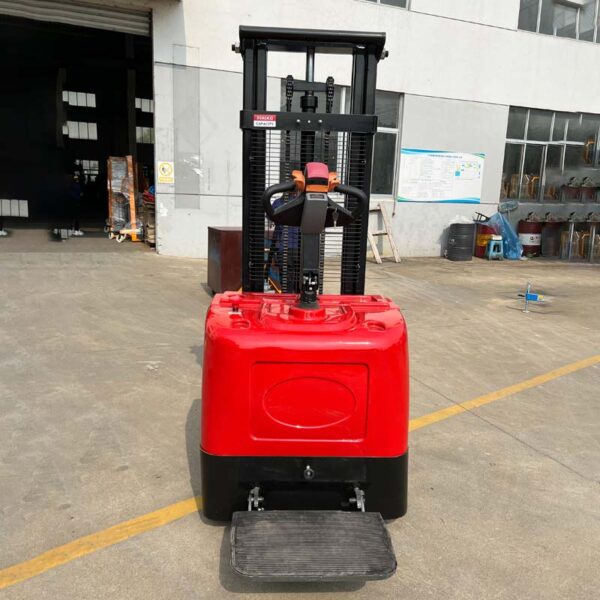

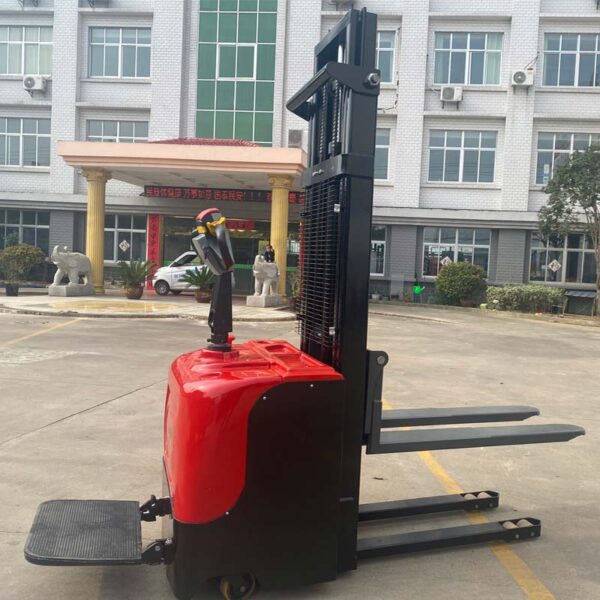

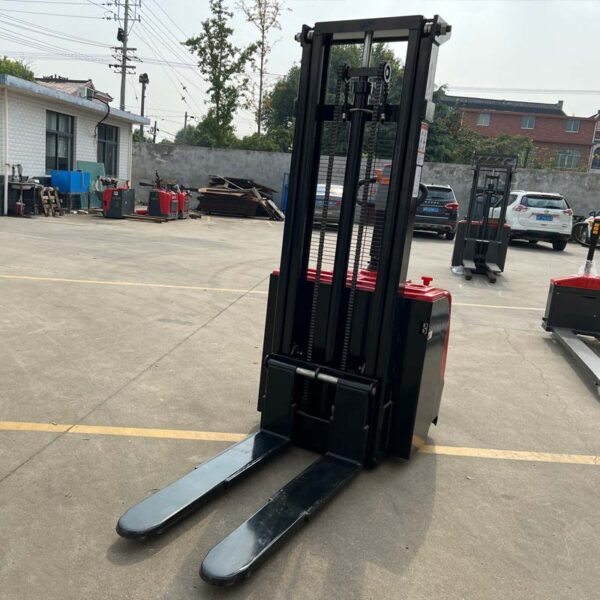

Soporte VY-CZD en apilador de paletas

Lifting Height

Load Capacity

Operation Method

The stand-up driving mode significantly reduces long-distance transfer times, offering significant productivity benefits.

It allows for flexible maneuvering through extremely narrow aisles, improving space utilization.

The floating pedal and integrated handle design significantly reduce fatigue during extended operation.

The wide driver's field of view ensures accurate and safe high-level loading and unloading.

Rated load	kg	7000
Load center	mm	600
Lift height	mm	3000
Free lift height	mm	200
Fork size	mm	122015065
Mast tilt angle (front and rear)	Deg.	6/12
Minimum turning radius	mm	3380
Ground clearance	mm	200
Overhead guard height	mm	2460
Front overhang	mm	590
Maximum travel speed (full load)	km/h	29
Maximum lift speed (full load)	mm/s	500
Maximum traction (full load)	KN	53
Maximum gradeability	%	20
Full length with forks	mm	4800
Full length without forks	mm	3580
Full width	mm	1995
Mast overall lift height	mm	4420
Mast closed height	mm	2625
Tires (front)		8.25-15-14PR
Tires (rear)		8.25-15-14PR
Wheelbase	mm	2250
Track width	mm	1470/1700
Machine weight	Kg	9350
Battery	V/Ah	（12/80）*2
Engine model		Xichai 4DF3
Engine rated power	kw/r.p.m	85
Transmission		Mechanical/Hydraulic
Operating pressure	Mpa	20
