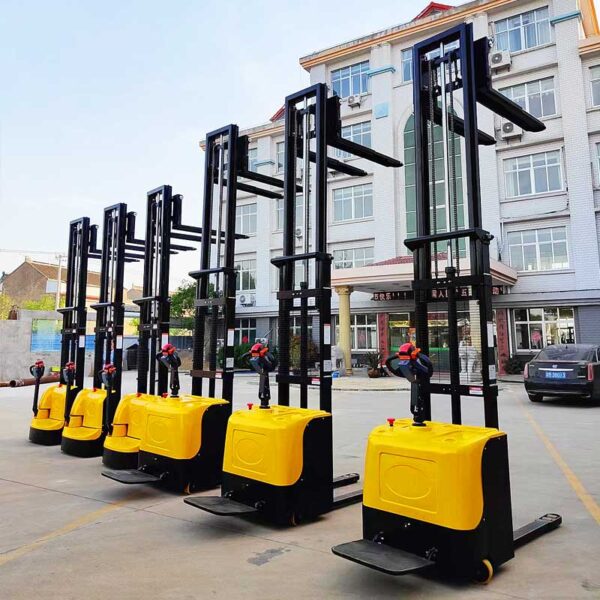

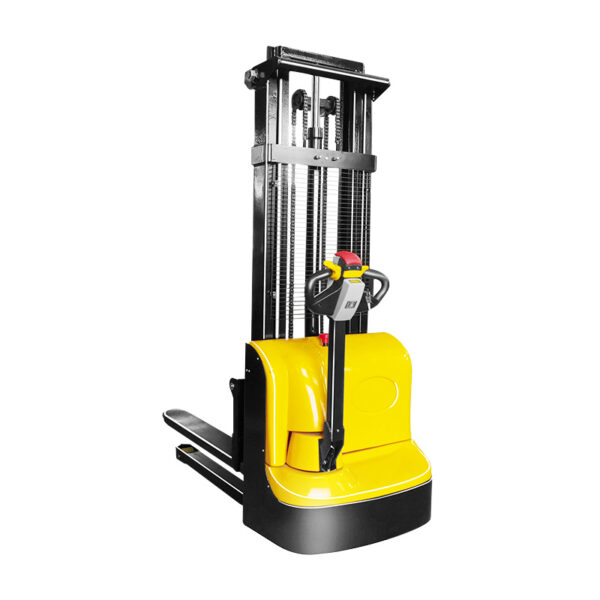

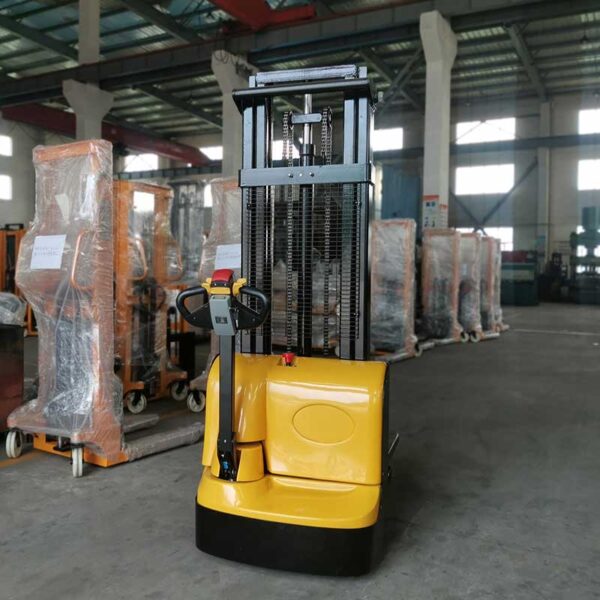

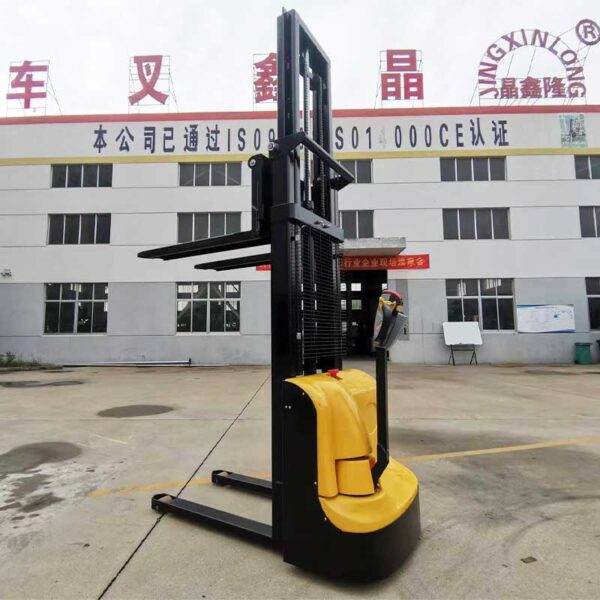

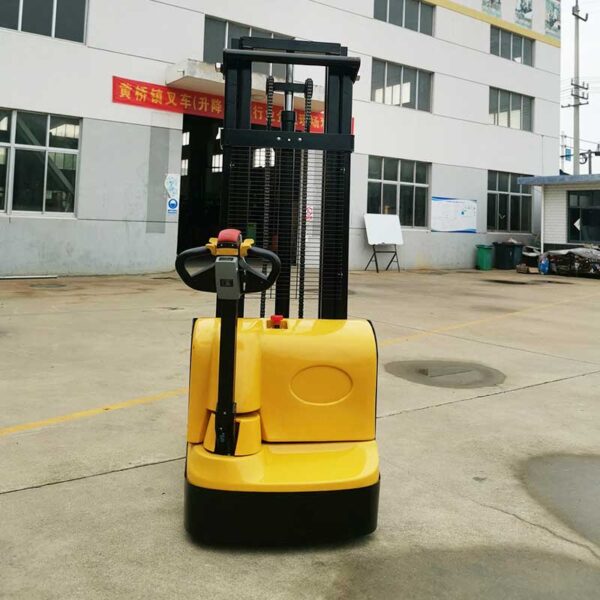

VY-CDD Electric Pallet Stacker

Lifting Height

Load Capacity

Operation Method

The all-electric drive significantly improves high-level stacking accuracy and operational fluidity.

The low noise and zero-emission features meet the clean environment requirements of industries such as food and pharmaceuticals.

The ergonomic design optimizes operator visibility and control feedback, reducing fatigue.

The electric process supports high-frequency handling tasks, significantly improving warehouse efficiency over the long term.

VY-CDD,Fully-ElectricStacker
Product Model	/	Electric
Drive type	/	Walking
Rate load	kg	1500	2000
Load centre dismensions(c)	mm	500	600
wheelbase	mm	1350	1350
Tire	/	Polyurethane wheels / Nylon wheels	Polyurethane wheels / Nylon wheels
Drive wheel dimensions	mm	250*80	250*80
Front wheel size	mm	80*60	80*60
Barhell dimensions	mm	100*50	100*50
Nusnber of wheels(rear/front)(X-drive wheels）		1x+2/4	1x+2/4
front wheelbase	mm	505	505
rear wheelbase	mm	690	690
Litting height	mm	1000/1600/2000/2500/3000	1000/1600/2000/2500/3000
Fork heieht from groumd(minimum)	mm	90	85
total length	mm	1800	1880
Fork dimcnsions (sheet metal)	mm	55/160/1100	55/180/1200
Extermal fork width	mm	680	680
minimum height from the ground	mm	30	30
Width of right angle stacking channel pallet 1000*1200（1200 along the fork-edge）	mm	2400	2400
turrting radiuts	mm	1350	2200
Drving speed at full load/unload	Km/h	4.5/5.8	4.5/5.8
Lifting speed at full load/no load	mm/s	35/23	35/23
Descent speed at fall load/noload	mm/s	38/30	38/30
Braking method	/	freno elettromagnetico	electromagnetic brake
Increase engine power	kw	2.2	2.2
Battery voltage/capacity	V/Ah	24/80	24/160
