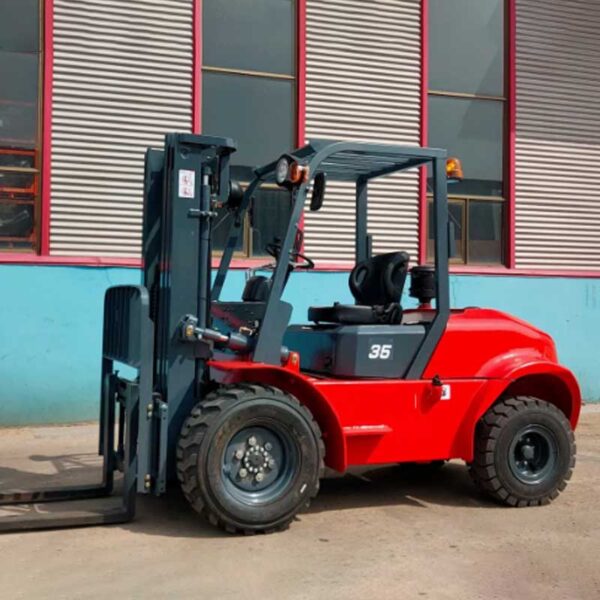

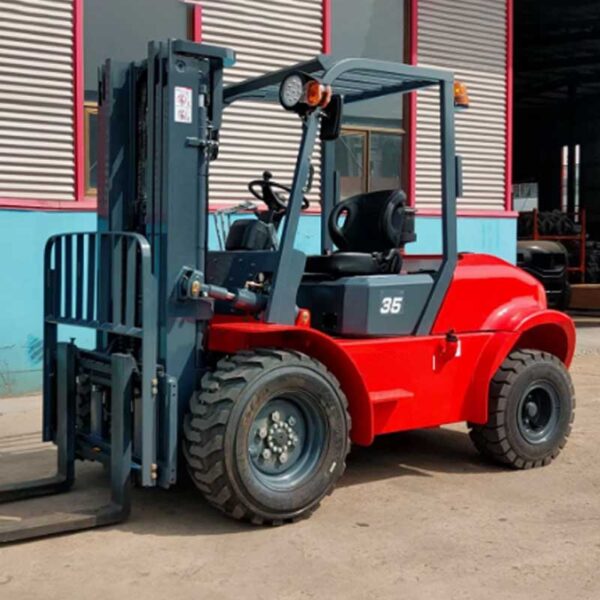

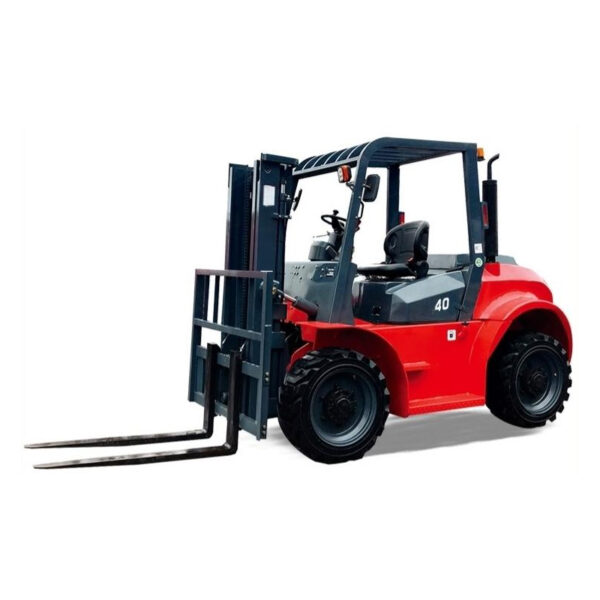

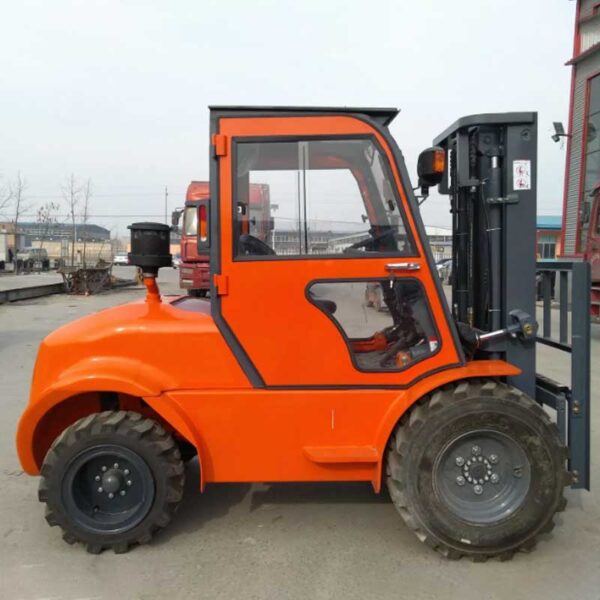

VY-CPCSY All Terrain Forklift

Power Type

Load Capacity

Drive Type

Lifting Height：3000-6000mm

Load Center Distance：500mm

1840/1950/2200mm

Unstoppable Performance: Its 4-wheel drive offers superior traction on any challenging terrain.

Extreme Durability: Built to handle the toughest outdoor environments with minimal maintenance.

High-Torque Power: The robust diesel engine provides exceptional strength for heavy loads.

Precision Control: Despite its power, it handles with great stability and accuracy.

Ultimate Versatility: A perfect solution for construction, logging, and other demanding industrial jobs.

Varyon Rough terrain forklift
Model			CPC30SY/CPC35SY	CPC40SY/CPC50SY
Power Drive			Diesel	Diesel
Rated Load		kg	3500	4000
Load Center		mm	500	500
Lift Height		mm	3000	3000
Fork Size	Length * Width * Depth	mm	451251070	107015050
Mast Tilt	Front/Rear	Deg	6/12	6/12
Minimum Turning Radius		mm	3960	4010
Ground Clearance (Unladen)	Minimum	mm	250	250
Overhead Guard Height		mm	2450	2480
Maximum Travel Speed	Unloaded	Km/h	30	38
Maximum Lift Speed	Fully Loaded/Unloaded	mm/s	450/550	460/550
Maximum Lowering Speed	Fully Loaded/Unloaded	mm/s	≤600/≥300	Full load <600, no load >300
Maximum Gradeability		%	25	25
Full length (with side shift)	With Forks	mm	4160	4365
Full length (with side shift)	Without Forks	mm	3090	3250
Full Width		mm	1600	1920
Maximum Fork Lift Height (with Backrest)		mm	4350	7150
Mast Floor Height		mm	2235	2990
Tire	Front Wheel		12-16.5-10PR	315/55D20
Tire	Rear Wheel		12-16.5-10PR	315/55D20
Wheelbase		mm	1840	1950/2200
Track	Front Wheel/Rear Wheel	mm	1250/1320	1585/1430
Weight	Unloaded	Kg	4900/5100	6250/6400
Battery	Voltage/Capacity	V/Ah	12/80（2）	12/80(2）
Engine	Model		YN4H055-34VE	YN4EZ080-30CR
	Rated Power	kw/r.p.m	36.8/2400	58.8/2400
	Rated Torque	Nm/r.p.m	185/1600-1800	276/1500-1800
	Number of Cylinders		4	4
	Displacement	L	2.543	3.76
Fuel tank capacity		L	80	90
Transmission			Hydraulic manual/automatic transmission	Hydraulic manual/automatic transmission
Gear (front/rear)			2/2	4/4
Optional Yanmar, Cummins, Isuzu
