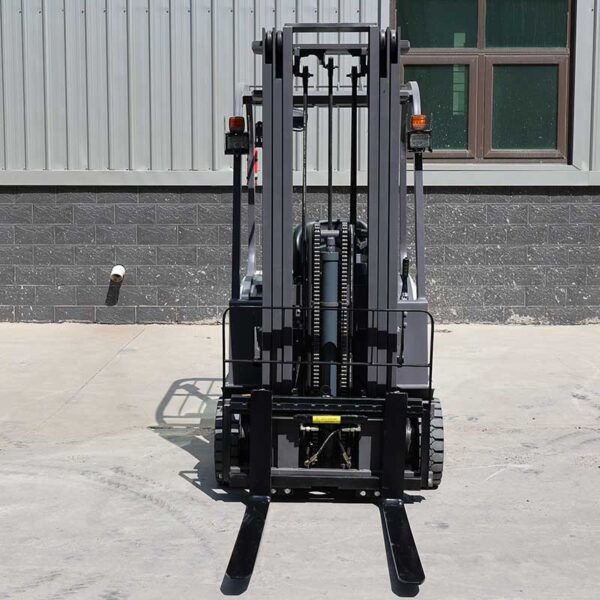

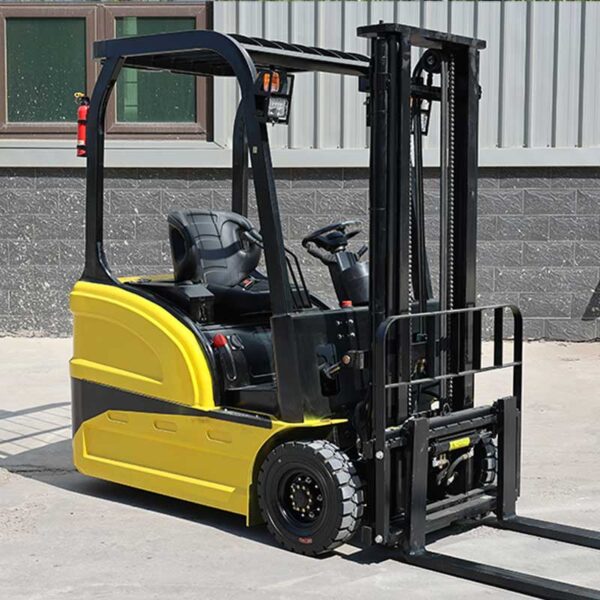

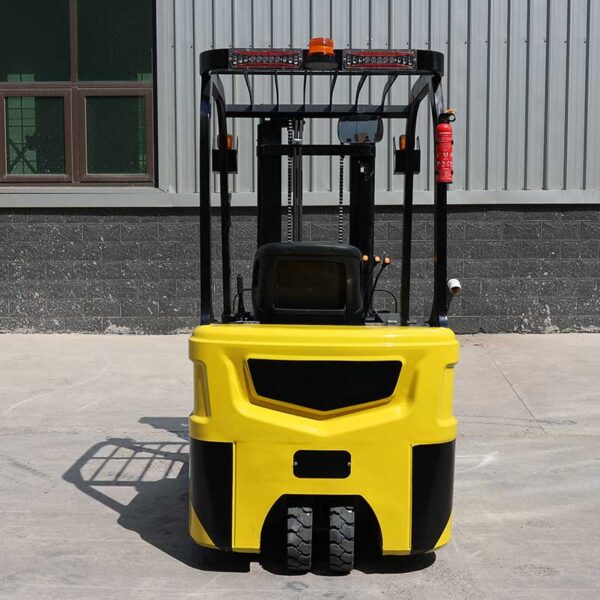

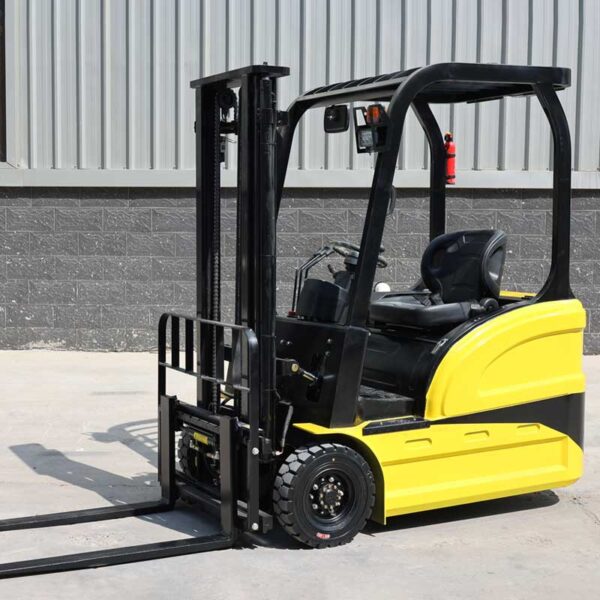

VY-CPDA 3-Wheel Electric Forklift

Lift

Load Capacity

Number of Wheels

Maximum lifting height: 6 m

Batteries: Lithium/lead-acid

Unmatched turning radius for superior agility.

Exceptional maneuverability in tight, crowded aisles.

Perfect stability and control in confined spaces.

Highly compact design maximizes your available space.

Delivers agile performance with zero emissions.

Varyon Three-point forklift
Model kg			1500	2000
Rated lifting capacity		kg	1500	2000
Full length	Without fork	mm	1850	1850
Full length	With fork	mm	2930	2930
Full Width	Frame width	mm	1120	1120
Full height	Height without lifting mast	mm	2180	2180
	Height of overhead guardrail	mm	2100	2100
	Maximum height during operation	mm	3880	3880
Wheelbase		mm	1400	1400
Front overhang		mm	360	360
Front wheel track		mm	900	900
Rear wheel track		mm	70	70
Minimum ground clearance	Mast lower end (empty/full)	mm	80	80
Minimum ground clearance	Middle of frame (empty/full)	mm	80	80
Maximum lifting height without load		mm	3000	3000
Free lifting height		mm	3000	3000
Gantry inclination angle		（°）	15	15
Normal weight of the whole machine under no-load condition		kg	2400	2900
Maximum lifting speed without load		mm/s	100	100
Maximum lifting speed with full load		mm/s	90	90
Minimum turning radius		mm	1700	1700
Maximum operating speed without load		km/h	11	11
Maximum operating speed with full load		km/h	8	8
Maximum climbing grade with full load		%	15	15
Load center distance		mm	500	500
Front wheel specifications		/	500-8	500-8
Rear wheel specifications		/	350-100	350-100
Lifting motor power		KW	4	5
Drive motor power		KW	4	5
Steering type		/	Hydraulic power assist	Hydraulic power assist
Charger input voltage		V	220	220
Charging time		h	8	8
Battery capacity		ah	70	70
Rated voltage		V	60	60
