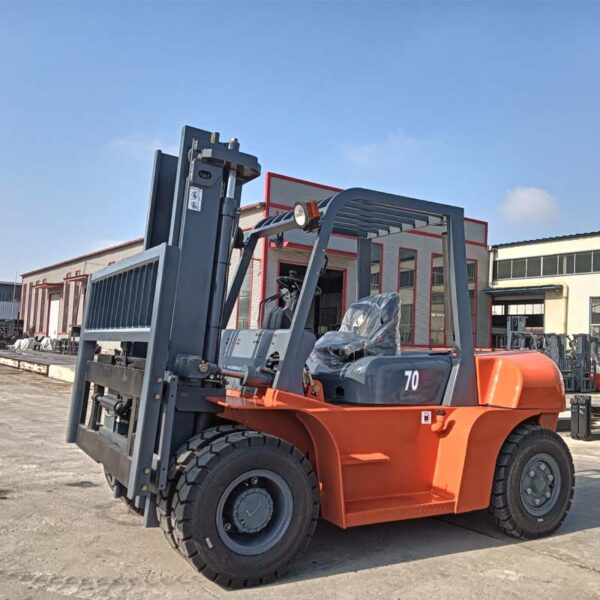

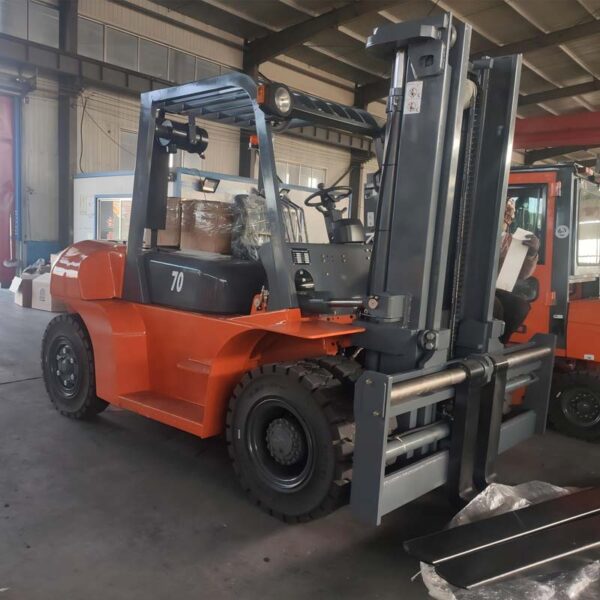

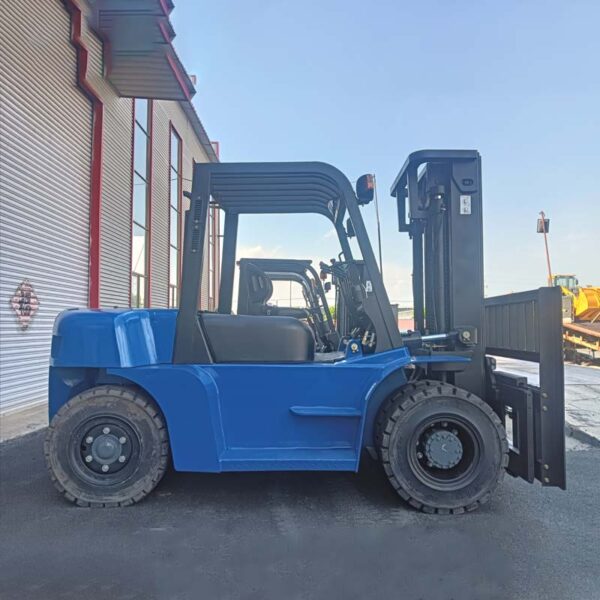

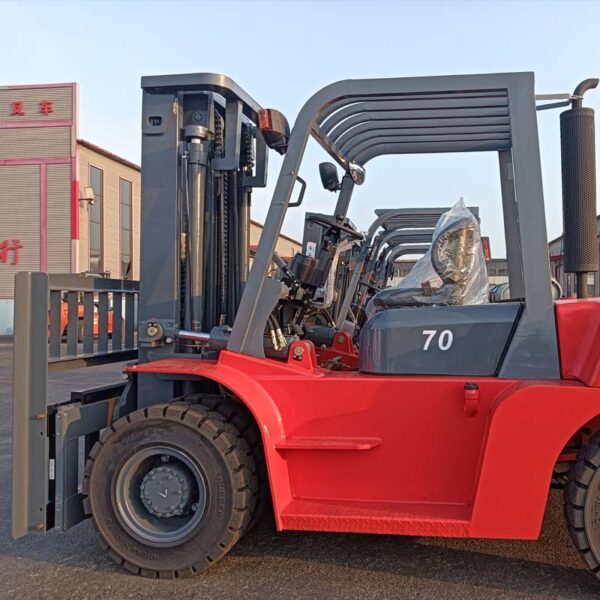

VY-CPC70 Diesel Forklift for Sale

Lifting Height

Load Capacity

Fork Size(L*W*H)

Max Lifting Height:6 m

Load Center Distance:600mm

Min Turning Radius:3380mm

Industrial Strength: Built for heavy-duty lifting and large-scale operations with superior power.

Unmatched Stability: Ensures secure handling of substantial loads, keeping operations safe.

Built for Durability: A rugged design withstands continuous, demanding industrial use.

Precision and Control: Offers responsive handling despite its massive size and strength.

Master of Tough Jobs: The ideal choice for the most challenging lifting tasks.

Rated load	kg	7000
Load center	mm	600
Lift height	mm	3000
Free lift height	mm	200
Fork size	mm	122015065
Mast tilt angle (front and rear)	Deg.	6/12
Minimum turning radius	mm	3380
Ground clearance	mm	200
Overhead guard height	mm	2460
Front overhang	mm	590
Maximum travel speed (full load)	km/h	29
Maximum lift speed (full load)	mm/s	500
Maximum traction (full load)	KN	53
Maximum gradeability	%	20
Full length with forks	mm	4800
Full length without forks	mm	3580
Full width	mm	1995
Mast overall lift height	mm	4420
Mast closed height	mm	2625
Tires (front)		8.25-15-14PR
Tires (rear)		8.25-15-14PR
Wheelbase	mm	2250
Track width	mm	1470/1700
Machine weight	Kg	9350
Battery	V/Ah	（12/80）*2
Engine model		Xichai 4DF3
Engine rated power	kw/r.p.m	85
Transmission		Mechanical/Hydraulic
Operating pressure	Mpa	20
